L&S MEC SYSTEM

The next evolution in lighting from L&S, exclusive to Wilson & Bradley is the all new MEC driver system.

The MEC system is a new driver that boasts flexibility and ease of use like never before. It is easy to install, control and transform your space.

The heart of the system is the new multi-voltage power source available in five different levels of wattage and suitable for 12V and 24V applications.

The MEC system makes it much easier to connect the lighting to a multitude of applications.

These include applications such as:

• Standard module
• Sensor and touch switch application with the Wired Sensor module
• Voice activated commands, wireless remote and sensor capabilities with the Smart module
• Smartphone app control and wireless sensor capabilities with the Bluesmart module

SMARTER TECHNOLOGY

EASIER INSTALLATION

BETTER EXPERIENCE

MODULES

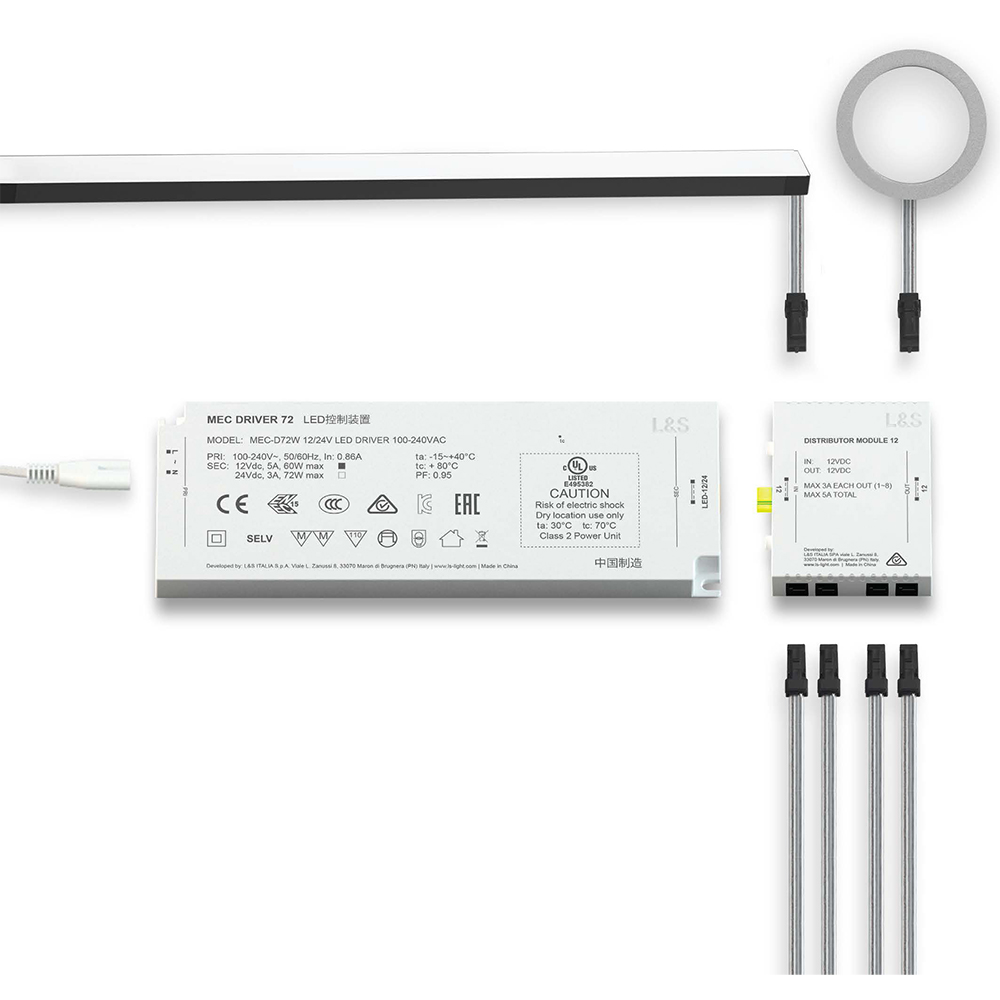

STANDARD MODULE

The Standard Distribution module is our standard control module, allowing for control only via a power switch. Available in 12V or 24V versions, this module allows up to 8 lights to be connected per distribution module.

The Standard Distribution module is available in 12V or 24V versions, allows up to 8 lights to be connected per distribution module.

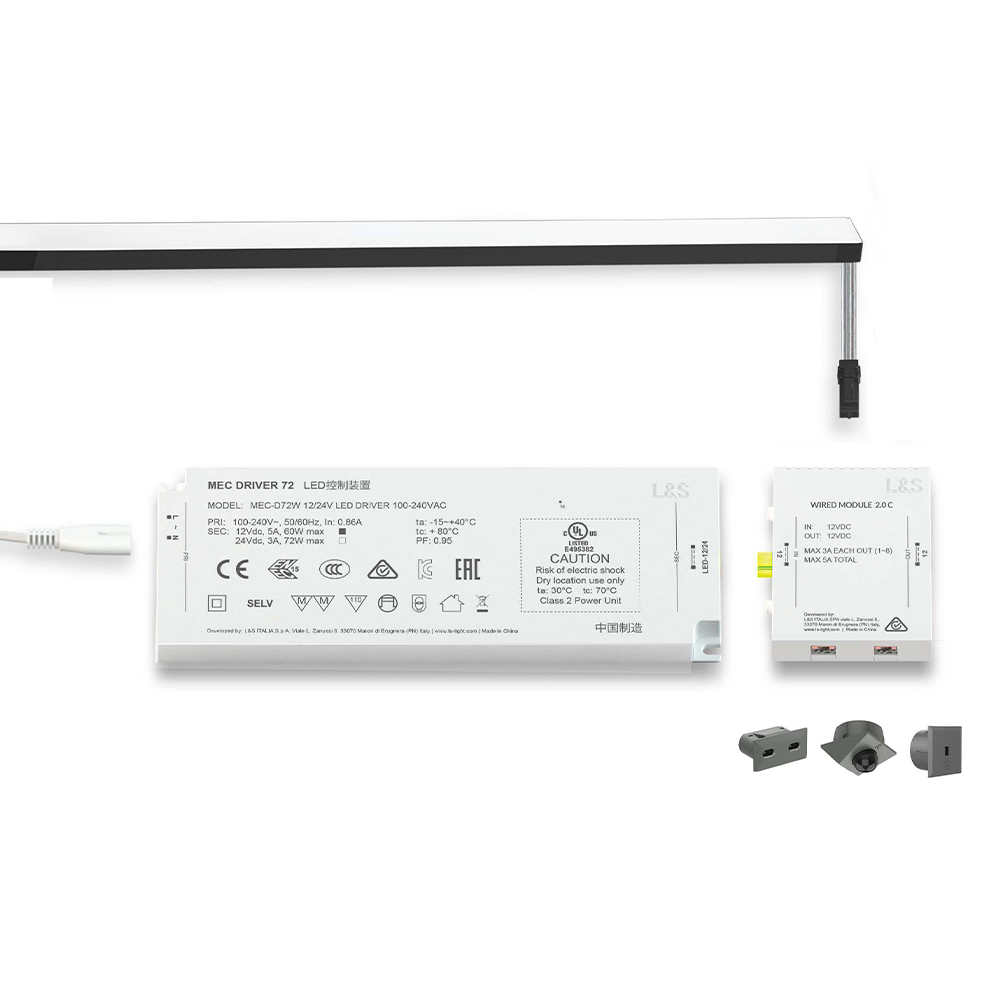

WIRED SENSOR MODULE

The Wired Sensor Distribution module is a module that allows you to control your lighting via sensors with the L&S IR and PIR sensors. Alternatively, L&S touch switches can be used to turn the lights on and off and also control brightness.

Multiple sensors and switches can be used with the same driver, meaning you can control numerous lights depending on your application. The Sensor Distribution module has a maximum of 4 output lights. This module is compatible with wired IR & PIR sensors, as well as Touch switches.

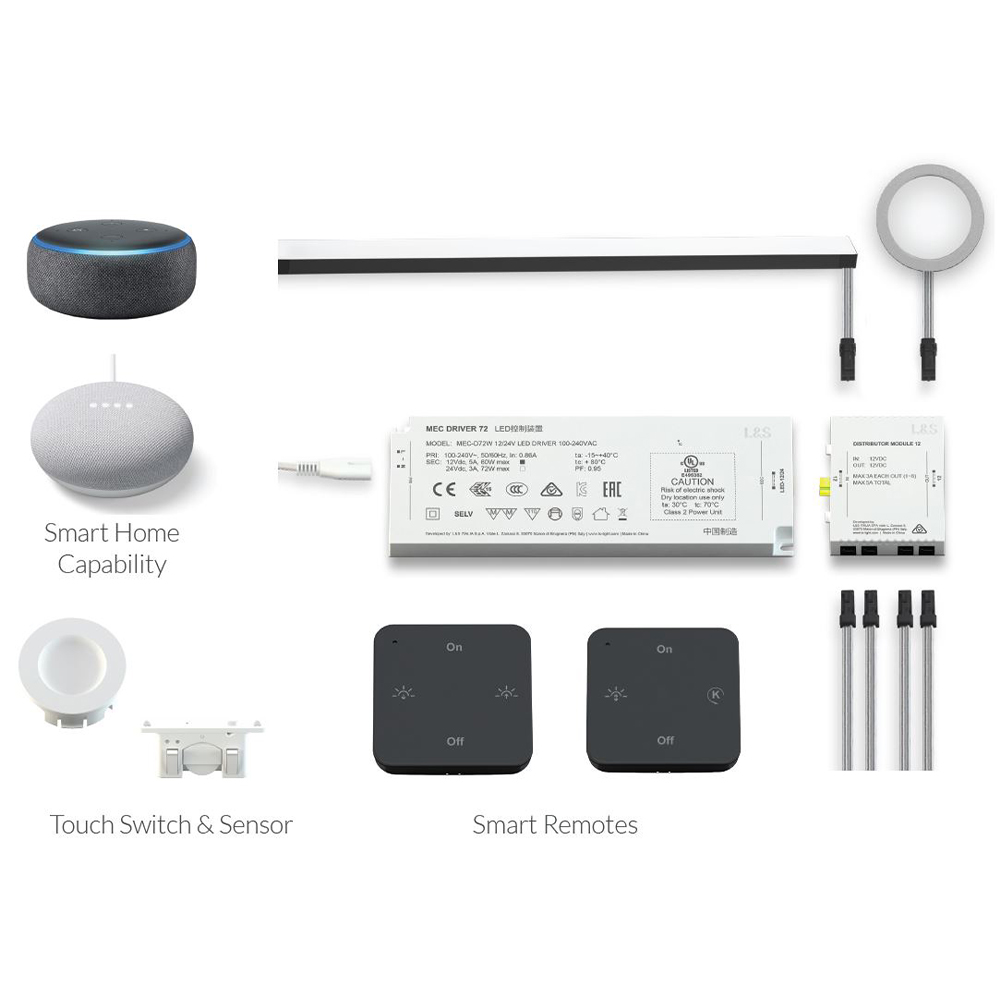

SMART MODULE

Control lights by using voice commands and/or wireless remote controllers and sensors with the Smart Module.

Available in 24V, these modules can be connected to other distribution modules as long as the same output voltage is maintained. Maximum of 8 output lights can be powered per module.

The Smart Distribution module is also compatible with wireless smart remotes, sensors and touch switches. The flexibility of the MEC system allows for multiple smart modules to be used off the one driver!

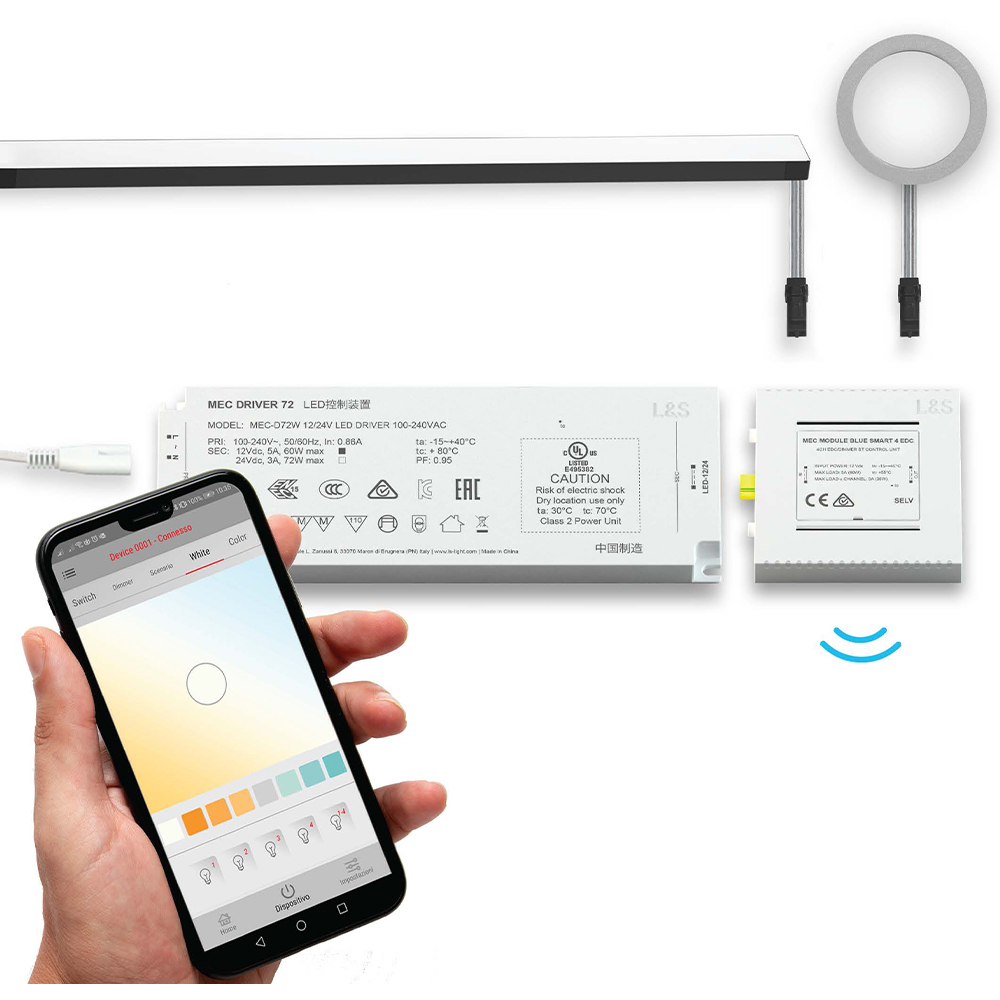

BLUESMART MODULE

The Bluesmart distribution module allows you to control up to 4 output lights using the Bluesmart app which can be downloaded for free from the Apple App store or Google Play store.

The Bluesmart Distribution module is also compatible with wireless smart controllers, smart touch and smart sensors.

Available in 24V, the modules can be connected to other distribution or control modules as long as the same output voltage is maintained.
